| Product
Class: |
| Product Serial ID: |
| Spec
File: |
| Brand
Name: LIAN-LI |
|
| |
| |
| Dimension |
210x490x525 mm (W,H,D) |
| Drive
bays |
5x5.25", 6x3.5" internal(removable), 1 x 5.25" to 3.5"
converter with a FDD bezel , 1x CD-ROM bezel |
| Fan |
12 cm bearing fans x 2, 12 cm blower fan x 1, Air Duct for CPU x 1, Air
Duct for PSU fan x 1 |
| M/B
Type |
ATX & pentium 4 (MAX SIZE: 12"x9.6") |
| Front
I/O |
USB2.0 x 2, IEEE1394 x 1, MIC x 1, EAR x 1 |
| Slot |
PCI slot x 7 |
| Power Supply Required |
ATX PSU |
| Net Weight |
|
|
| |
|

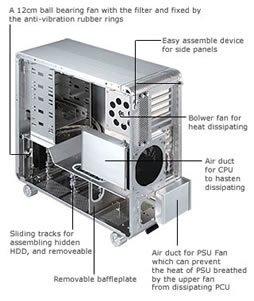

| -Interior
three zones design for better heat dissipating |
| -Multi-Ventilator
for heat dissipating |
| -Sliding
tracks for easy assemble hidden H.D.D. |
| -Easy
assemble device for side panels |
| -Aluminum
casters with brake |
| -Crenulate
edge of side panel |
| -High
quality stainless power button |
| -CD/DVD
ROM bezel x 1 ; 5.25" to 3.5" convertor with floppy bezel x 1 |
| -Air
duct for CPU to hasten dissipating |
| -Air
duct for PSU fan which can prevent the heat of PSU breathed by the upper
fan from dissipating CPU |
| -A
12cm ball bearing fan with filter and fixed by the anti-vibration rubber
rings |
| -Removable
sound damping cover for the fan in the rear. |
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
| Notes: |
|
| Specification may be different in different states, and countries. |
|
| Please
refer to the actual product. |
|
| Specifications
are subject to change without notice. |
|
| |
|
